SPECK TRIPLEX PUMPEN

High pressure pumps









High pressure pumps

and pumping units

Product range

E.A.KRUPIŃSKI

31-961 Kraków, os. Górali 22/6

Sales office:

31-867 Kraków, os 2 Pułku Lotniczego 9a

tel. (0-12) 647-70-26 fax (0-12) 645-56-84, 647-70-26

Poland

www.krupinski.krakow.pl



CONTENTS


Pumping units. Table of parameters

KRS 140/15

KRS 200/15

KRSH 140/13

KRSH 200/15

KRS 130/20

KRS 280/15

KRS 350/21

KRSH 350/21

KRSD 350/21

A11/10-1.8

KRS 250/10

KRS 140/15 M

KRS 3 x 140/15 M

KRS 50/120 K

KRS 13/100

KRS 6/40 P11D

KRS 15/100

KRS 5/200

KRS 43/130

KRSD 90/18

KRS 2 x 140/15 P21



Pumping units. Table of parameters


Name

Max pressure

Max capacity

Standard drive

Applications

bar

l/min

motor

KRS 140/15

140

15

electric

mobile universal high pressure cleaner

KRS 200/15

200

15

electric

mobile universal high pressure cleaner

KRSH 140/13

140

13

gasoline

mobile universal high pressure cleaner

KRSH200/15

200

15

gasoline

mobile universal high pressure cleaner

KRS 130/20

130

20

electric

mobile universal high pressure cleaner with high capacity

KRS 280/15

280

15

electric

mobile universal high pressure cleaner with higher work pressure

KRS 350/21

350

21

electric

mobile or standing universal high pressure cleaner with very high pressure

KRSH 350/21

350

21

gasoline

mobile or standing universal high pressure cleaner with very high pressure

KRSD 350/21

350

21

diesel

mobile or standing universal high pressure cleaner with very high pressure

A11/10-1.8

100

10

electric

high pressure cleaner or standing pumping unit with single-phase electric drive

KRS 250/10

250

10

electric

high pressure cleaner with very high pressure and small capacity

KRS 140/15 M

140

15

electric

pumping unit for one washing stand at car washing facility

KRS 3 x 140/15 M

140

45

electric

pumping system fore three washing stands at car washing facility

KRS 50/120 K

120

50

gasoline

sewer system high pressure cleaner

KRS 13/100

145

13

electric explosionproof

pumping unit for washing system at chemical plant

KRS 6/40 P11D

38

6

electric

pumping unit for steam generator

KRS 15/100

100

15

electric

pumping unit for pressure proofs

KRS 5/200

30

5

electric

pumping unit for spraying system at brewery works

KRS 43/130

130

29

electric

pumping unit for wood panels cutting device

KRSD90/18

90

18

Diesel

Mobile univelrsal high pressure cleaner

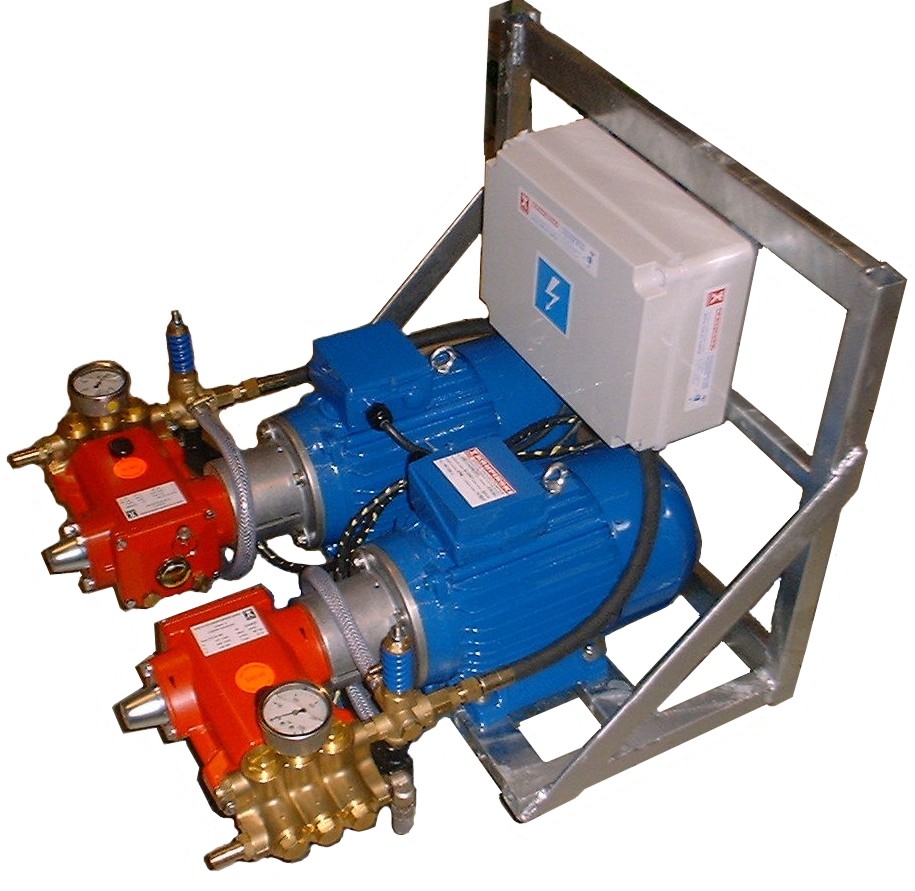

KRS 2 x 140/15 P21

120

30

Electric

pumping system fore two washing stands at car washing facility

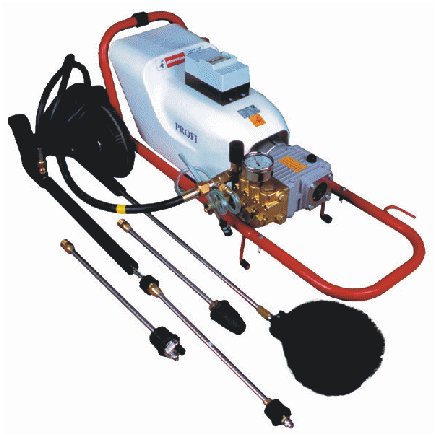

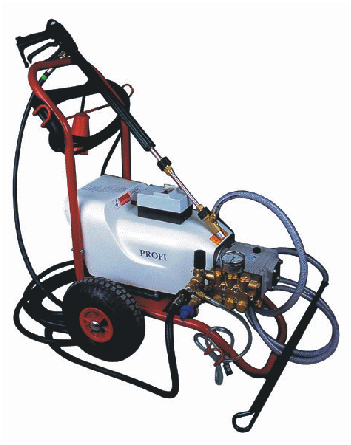

HIGH PRESSURE CLEANER

KRS 140/15


Standard high pressure cleaner. Many applications and industrial quality for low price.



Parameters:

Pump:

SPECK NP10/15-140

Pressure:

P = 140 bar

Capacity:

Q = 15 l/min

Drive:

Electric motor, triple phase

Drive power:

4,0 kW

Medium:

Water

Max. medium temperature:

700C


Standard equipment:

Convenient cart, injector, hose 10m, spray gun, lance with nozzle.


Modifications:

Possibility of auto-stop device - KRS 140/15 M

HIGH PRESSURE CLEANER

KRS 200/15


Standard high pressure cleaner. Many applications and industrial quality for low price. High working pressure allow to clean strong soils.


Parameters:

Pump:

SPECK NP16/15-210

Pressure:

P = 200 bar

Capacity:

Q = 15 l/min

Drive:

Electric motor, triple phase

Drive power:

5,5 kW

Medium:

Water

Max. medium temperature:

700C


Standard equipment:

Convenient cart, injector, hose 10m, spray gun, lance with nozzle.


Modifications:

Possibility of auto-stop device - KRS 200/15 M

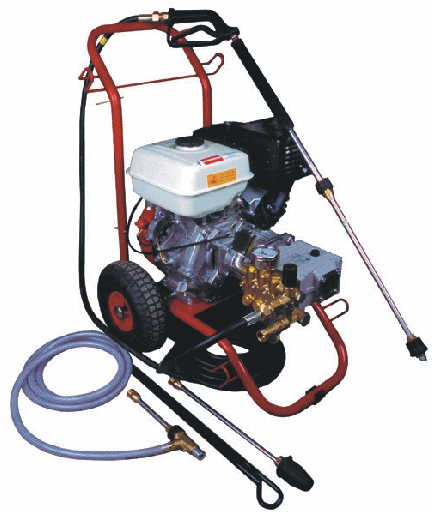

HIGH PRESSURE CLEANER

KRSH 140/13


Mobile high pressure cleaner with gasoline engine. Many applications and industrial quality with ability to work without electric. Very good choice for i.e. road maintenance.


Parameters:

Pump:

SPECK NP10/13-140

Pressure:

P = 140 bar

Capacity:

Q = 13 l/min

Drive:

Gasoline, four stroke engine

Drive power:

3,7 kW

Medium:

Water

Max. medium temperature:

700C


Standard equipment:

Convenient cart, injector, hose 10m, spray gun, lance with nozzle.


Modifications:

The customer can choose engine: Honda, Briggs&Stratton, ACME

HIGH PRESSURE CLEANER

KRSH 200/15


Mobile high pressure cleaner with gasoline engine. Many applications and industrial quality with ability to work without electric. High power of cleaning due to high operating pressure and capacity. Very good choice for i.e. road maintenance, airport maintenance and repair.


Parameters:

Pump:

SPECK NP16/15-210

Pressure:

P = 200 bar

Capacity:

Q = 15 l/min

Drive:

Gasoline, four stroke engine

Drive power:

6,0 kW

Medium:

Water

Max. medium temperature:

700C


Standard equipment:

Convenient cart, injector, hose 10m, spray gun, lance with nozzle.


Modifications:

The customer can choose engine: Honda, Briggs&Stratton, ACME

HIGH PRESSURE CLEANER

KRS 130/20


High pressure cleaner with great capacity. Possibility to work with two spray guns.

Parameters:

Pump:

SPECK NP16/21-140

Pressure:

P = 130 bar

Capacity:

Q = 20 l/min

Drive:

Electric motor, triple phase

Drive power:

5,5 kW

Medium:

Water

Max. medium temperature:

700C


Standard equipment:

Convenient cart, injector, hose 10m, spray gun, lance with nozzle.


Modifications:

Possibility of auto-stop device.

HIGH PRESSURE CLEANER

KRS 280/15


High pressure cleaner with great power of cleaning. Very high pressure can remove old, hard soils.



Parameters:

Pump:

SPECK P22/15-280

Pressure:

P = 280 bar

Capacity:

Q = 15 l/min

Drive:

Electric motor, triple phase

Drive power:

7,5 kW

Medium:

Water

Max. medium temperature:

700C


Standard equipment:

Convenient cart, injector, hose 10m, spray gun, lance with nozzle.


Modifications:

Possibility of auto-stop device. Possibility of build-in version.

HIGH PRESSURE CLEANER

KRS 350/21


High pressure cleaner with great cleaning ability. Very high pressure and great capacity make this machine very powerful unit.

Parameters:

Pump:

SPECK NP25/21-350

Pressure:

P = 350 bar

Capacity:

Q = 21 l/min

Drive:

Electric motor, triple phase

Drive power:

15 kW

Medium:

Water

Max. medium temperature:

700C


Standard equipment:

Convenient cart, injector, hose 10m, spray gun, lance with nozzle.


Modifications:

Possibility of auto-stop device. Possibility of build-in version. Possibility of electronic control devices intallation.


HIGH PRESSURE CLEANER

KRSH 350/21


High pressure cleaner with great cleaning ability. Very high pressure and great capacity make this machine very powerful unit. Gasoline engine allow machine to work in field applications. Electric starter make work with machine convenient.

Parametry:

Pump:

SPECK NP25/21-350

Pressure:

P = 350 bar

Capacity:

Q = 21 l/min

Drive:

Gasoline, four stroke Honda engine

Drive power:

18 kW

Medium:

Water

Max. medium temperature:

700C


Standard equipment:

Hose 10m, spray gun, lance with nozzle.


Modifications:

Possibility of build-in version. Possibility of trailer version.

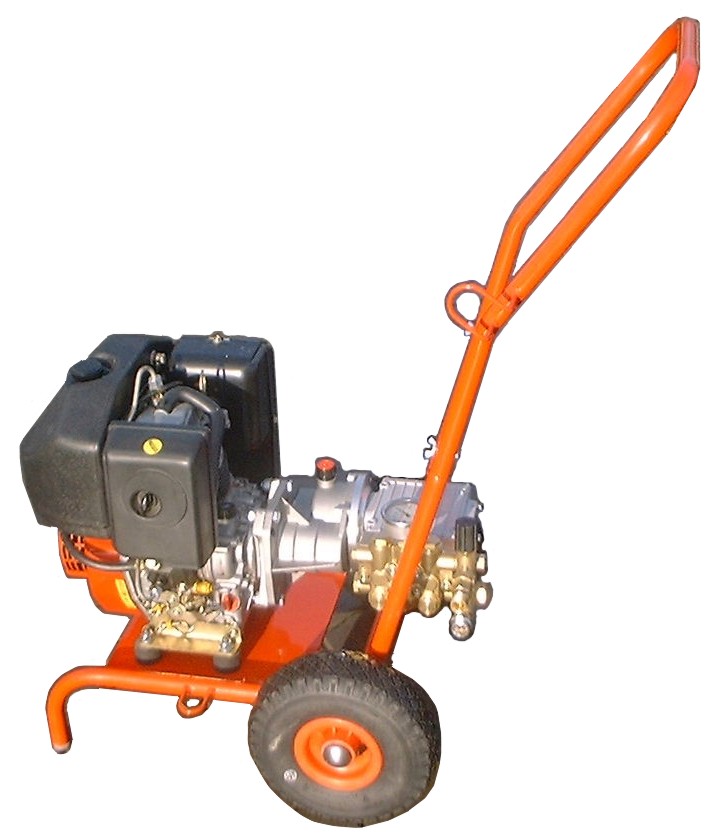

HIGH PRESSURE CLEANER

KRSD 350/21


High pressure cleaner with great cleaning ability. Very high pressure and great capacity make this machine very powerful unit. Diesel engine and trailer allow machine to work in field applications. Electric starter make work with machine convenient.

Parameters:

Pump:

SPECK NP25/21-350

Pressure:

P = 350 bar

Capacity:

Q = 21 l/min

Drive:

Diesel engine

Drive power:

20 kW

Medium:

Water

Max. medium temperature:

700C


Standard equipment:

Hose 10m, spray gun, lance with nozzle.


Modifications:

The customer can choose the manufacturer of the engine and trailer also.

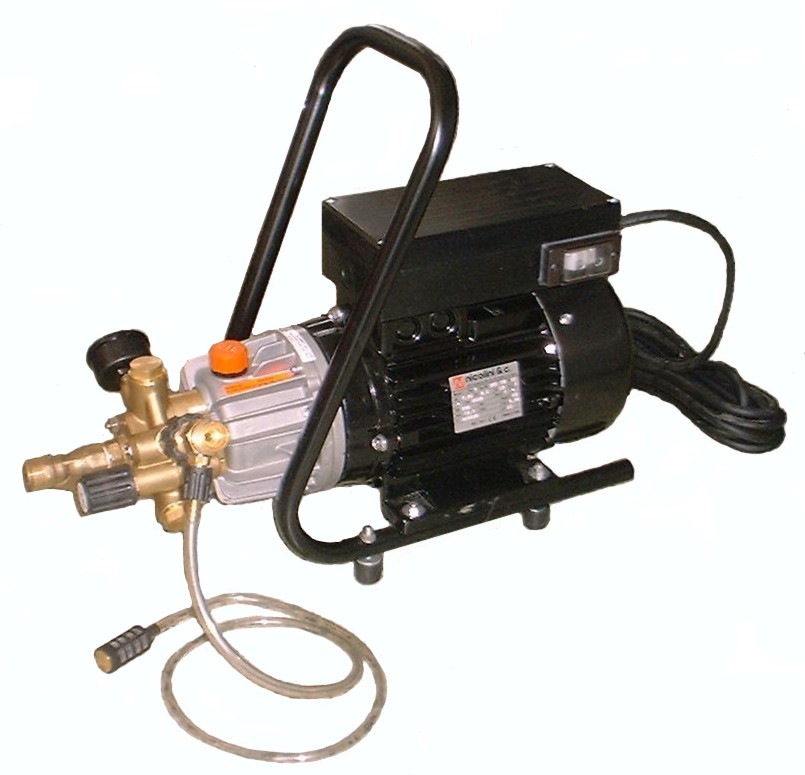

UNIVERSAL PUMP UNIT


A11/10-1.8


High pressure unit which can work as the cleaner, and also can be installed in special high pressure systems.

Parameters:

Pump:

SPECK A11/10-100

Pressure:

P = 100 bar

Capacity:

Q = 10 l/min

Drive:

Electric motor, single phase

Drive power:

1,8 kW

Medium:

Water

Max. medium temperature:

700C


Standard equipment:

Hose 10m, spray gun, lance with nozzle.


Modifications:

Possibility of work with electronic control devices. Small version with 1,5 kW motor with pressure P = 80 bar.

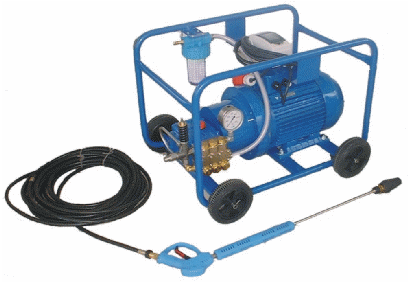

HIGH PRESSURE CLEANER

KRS 250/10


Very high pressure with small capacity. Suitable to clean hard soils with economic and ecological use of water.


Parameters:

Pump:

SPECK A51/10-250

Pressure:

P = 250 bar

Capacity:

Q = 10 l/min

Drive:

Electric motor, triple phase

Drive power:

5,5 kW

Medium:

water

Max. medium temperature:

700C


Standard equipment:

Convenient cart, injector, hose 10m, spray gun, lance with nozzle.


Modifications:

Possibility of auto-stop device. Possibility of electronic control devices intallation. Possibility build-in version.

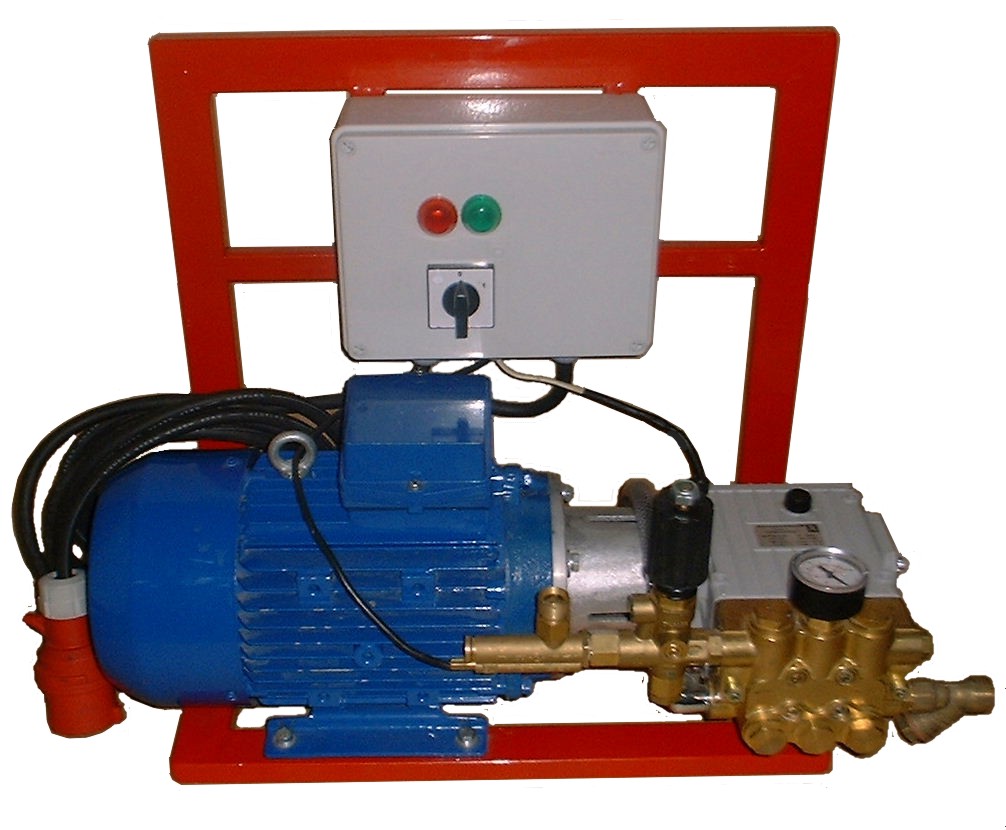

HIGH PRESSURE PUMP UNIT


KRS 140/15 M


High pressure pump unit for high pressure cleaning system i.e. in car washing facility or poultry works.

The unit has an auto-stop device and simple control system.


Parameters:

Pump:

SPECK NP10/15-140

Pressure:

P = 140 bar

Capacity:

Q = 15 l/min

Drive:

Electric motor, triple phase

Drive power:

4,0 kW

Medium:

Water

Max. medium temperature:

700C


Standard equipment:

Control system, auto-stop device, injector, hose 10m, spray gun, lance with nozzle.


Modifications:

I.e. controlling from workplace (on/off switch next to spray gun site)

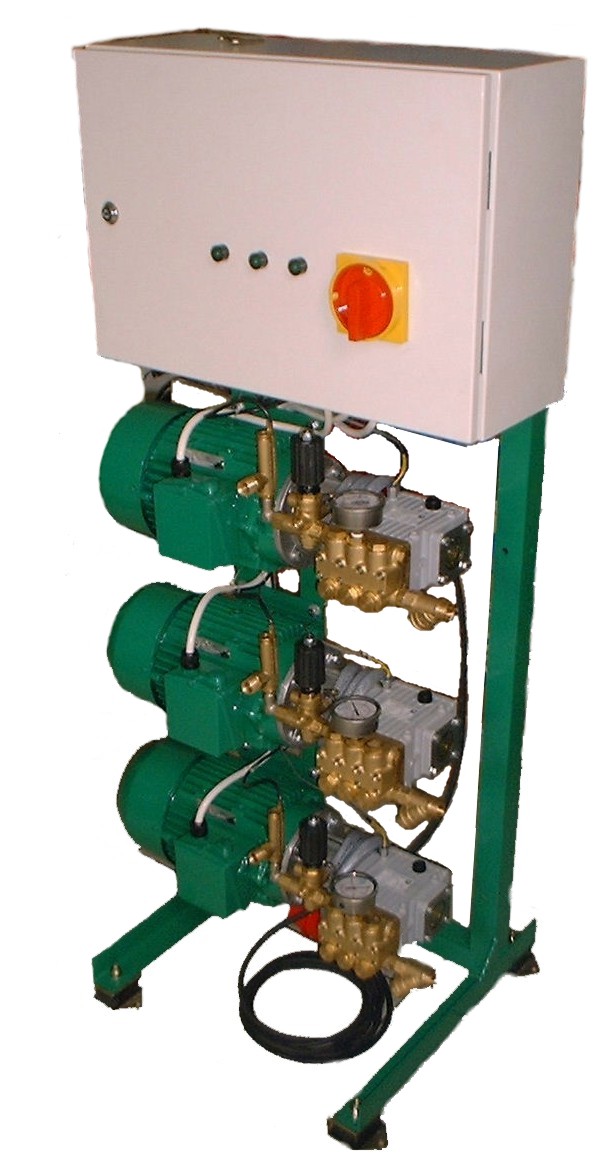

HIGH PRESSURE PUMPING SYSTEM FOR CAR WASHING FACILITIES


KRS 3 x 140/15 M


Complete pumping system for car washing facility. Modular construction. Shown system works with three washing sites. Included control system.


Parameters:

Basic pumping unit:

KRS 140/15 M – 3 pieces

Total power requirement (maximum):

12 kW

Total capacity requirement (maximum):

45 l/min

Basic pumping unit parameters

Pump:

SPECK NP10/15-140

Pressure:

P = 140 bar

Capacity:

Q = 15 l/min

Drive:

Electric motor, triple phase

Drive power:

4,0 kW

Medium:

Water

Max. medium temperature:

700C


Standard equipment:

Control system, auto-stop devices, on/of switches installed next to washing stands.


Modifications:

Possibility of build up with next basic pumping units.

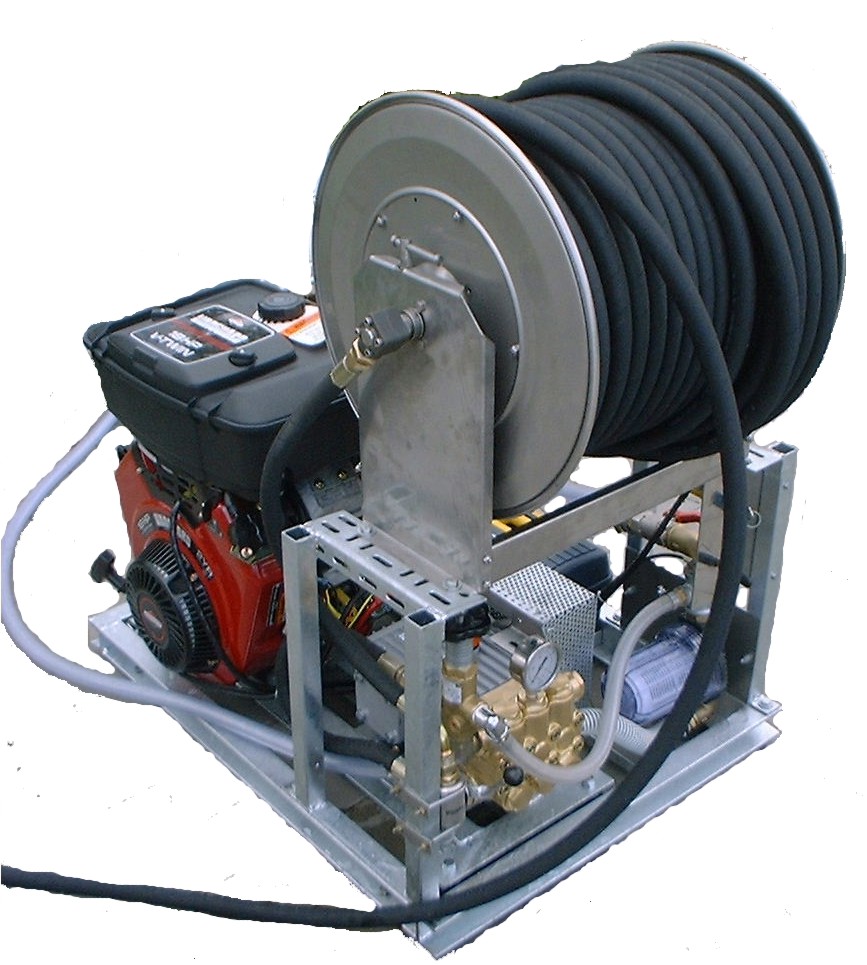

HIGH PRESSURE UNIT FOR SEWER SYSTEM CLEANING


KRS 50/120 K


High pressure unit designed to clean sewer systems. High pressure and capacity allows the user to clean the sewers with high efficiency. Included hose reel and set of suitable nozzles. The unit has also the capability of work with water supplied from tank or external source. The unit is designed for build-in the car.



Parameters:

Pump:

SPECK NP25/50-120

Pressure:

P = 120 bar

Capacity:

Q = 50 l/min

Drive:

Gasoline engine

Drive power:

18 kW

Medium:

Water

Max. medium temperature:

700C

Medium source:

External or tank


Applications:

Cleaning of the sewer systems


Standard equipment:

Unloader valve, manometer, special water filtering unit, hand-propelled hose reel, 60 m sewer cleaning hose, set of nozzles, 10 m high pressure hose, spraying pistol with lance


Modifications:

Hose reel with hydraulic drive. Version for trailer installation. Versions with parameters meeting the user requirements

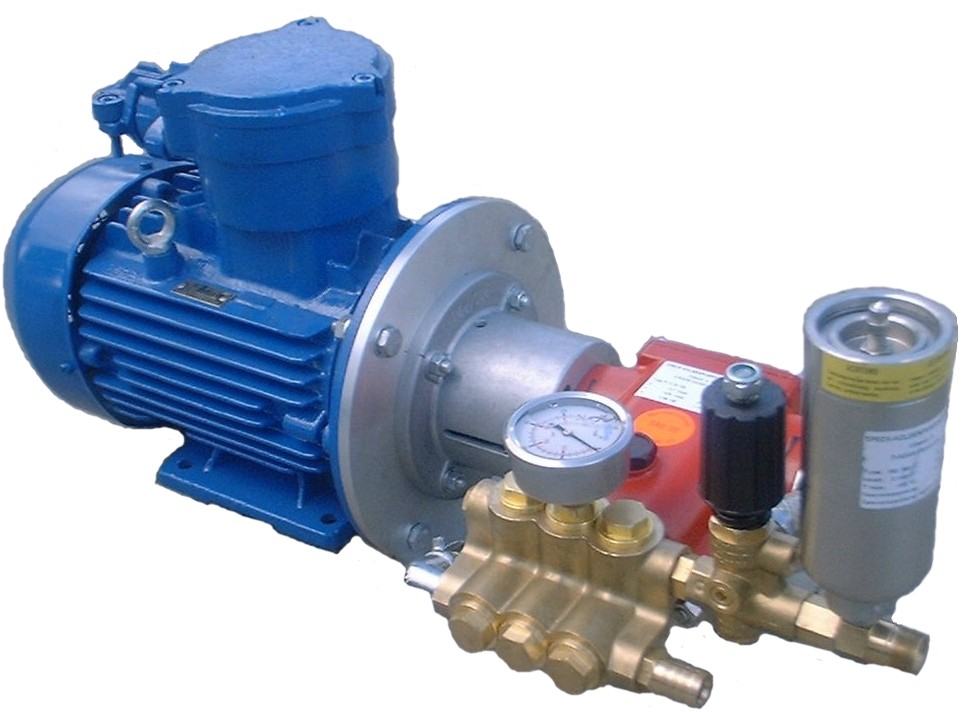

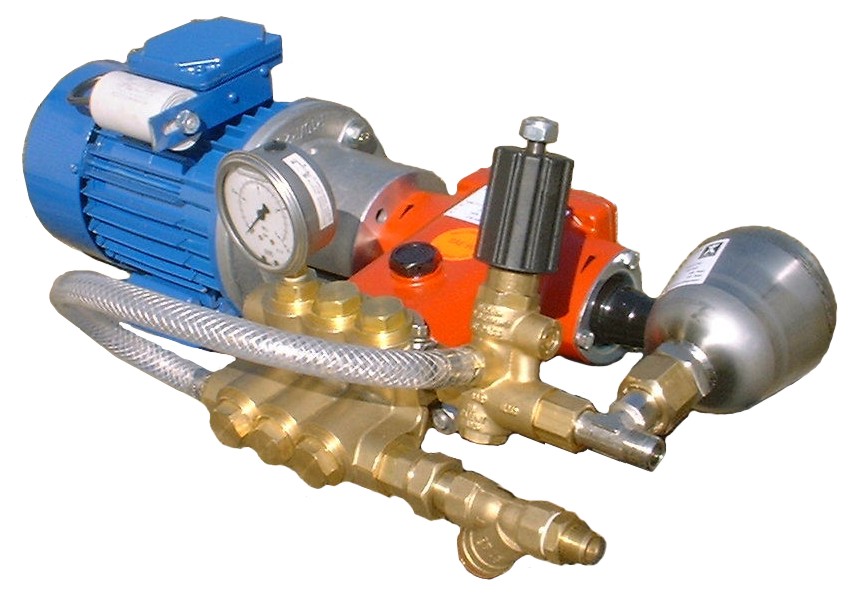

HIGH PRESSURE PUMPING UNIT


KRS 13/100


High pressure pumping unit with anti-blast electric motor. Application: high pressure cleaning system in chemical works. Automatic cleaning of barrels.


Parameters:

Pump:

SPECK P11/13-100

Pressure:

P = 145 bar

Capacity:

Q = 12,7 l/min

Drive:

Electric motor, triple phase, anti-blast construction

Drive power:

3,0 kW

Medium:

Water

Max. medium temperature:

700C


Standard equipment:

Unloader valve, manometer, hydroaccumulator.


Modifications:

Electronic control of pumping parameters.

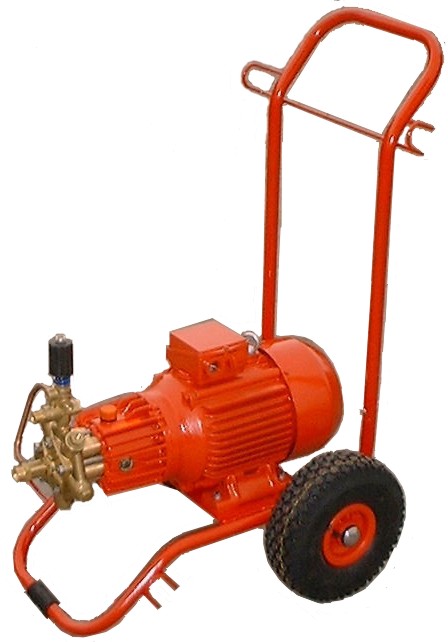

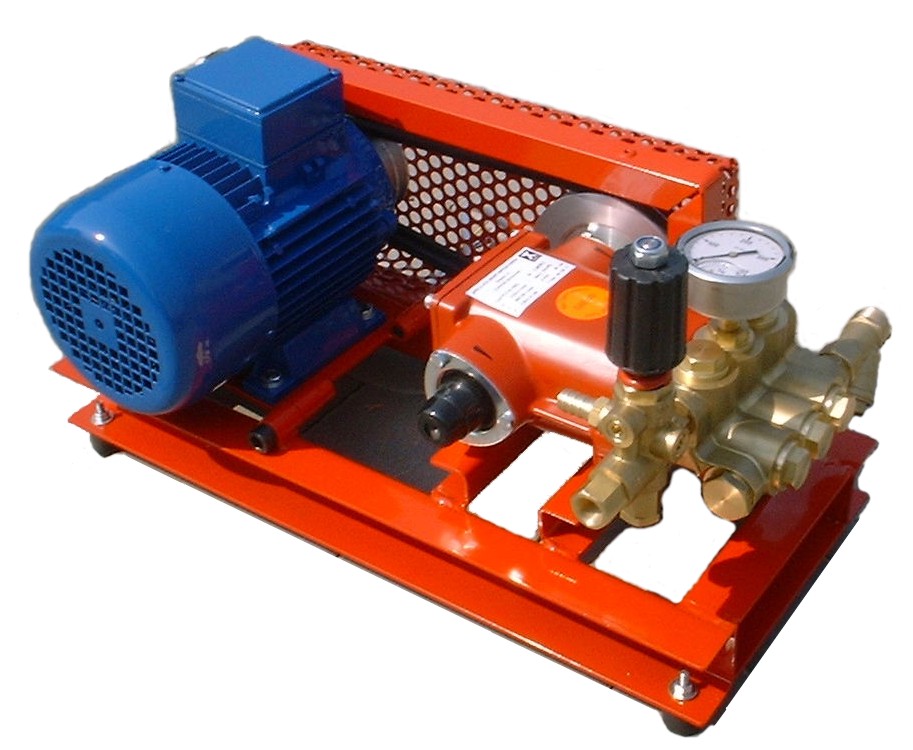

HIGH PRESSURE PUMPING UNIT


KRS 6/40 P11D


High pressure pumping unit supplying injection system in steam pipe, to control steam temperature. This pumping unit can work with steam generators also.


Parameters:

Pump:

SPECK P11/10-100D

Pressure:

P = 38 bar

Capacity:

Q = 6,0 l/min

Drive:

Electric motor, triple phase

Drive power:

0,55 kW

Medium:

Condensate

Max. medium temperature:

90/1050C


Standard equipment:

Unloader valve, manometer.


Modifications:

Electronic control of pumping parameters.

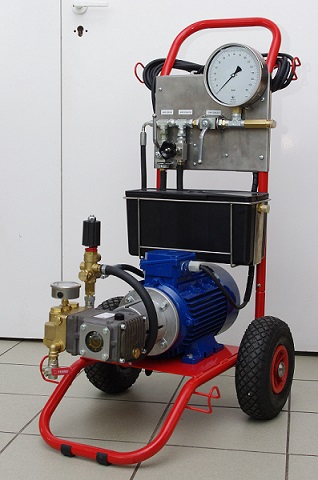

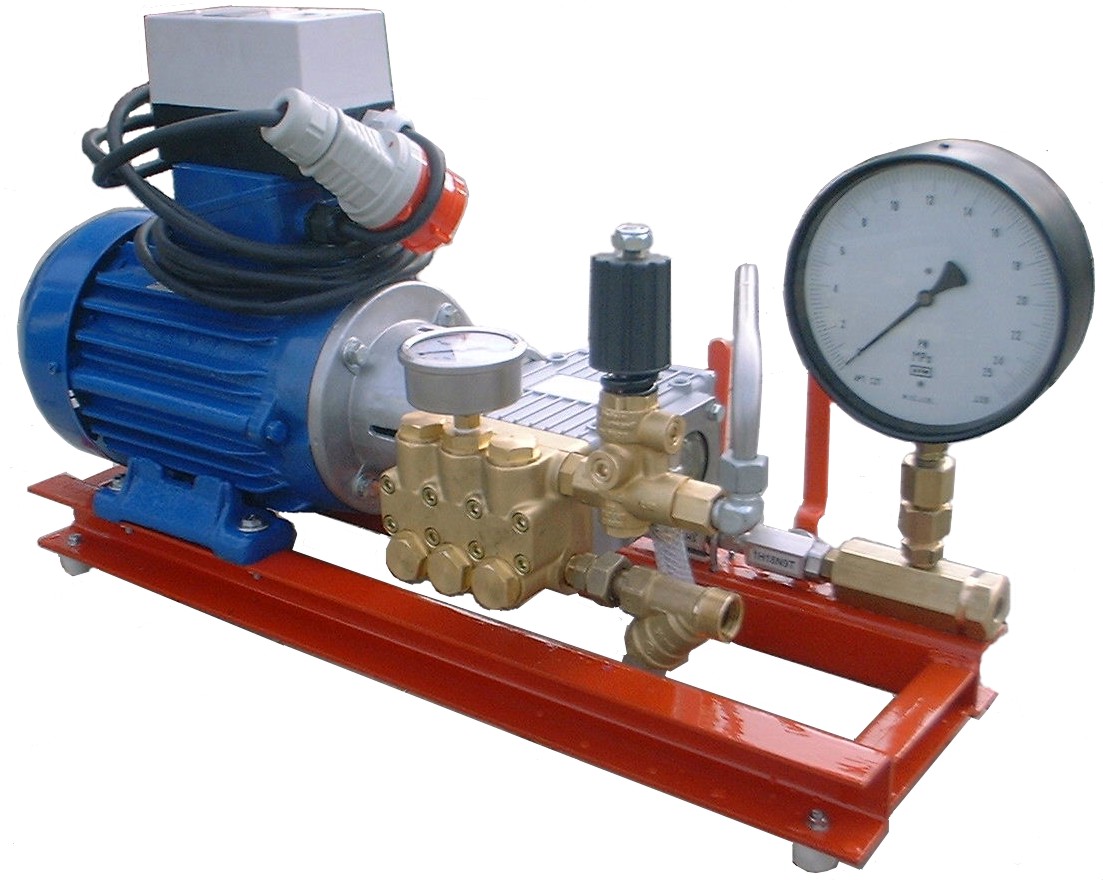

HIGH PRESSURE PUMPING UNIT


KRS 15/100 SC


High pressure pumping unit designed for tank's hermetic checking.


Parameters:

Pump:

SPECK NP10/15-140

Pressure:

P = 100 bar

Capacity:

Q = 15 l/min

Drive:

Electric motor, triple phase

Drive power:

3,0 kW

Medium:

Water

Max. medium temperature:

700C


Standard equipment:

Unloader valve, manometer, valve system, huge and precise second manometer.


Modifications:

Electronic control of pumping parameters, connections for fast connecting the tanks.

HIGH PRESSURE PUMPING UNIT


KRS 5/200


High pressure pumping unit supplying spraying system at brewery works.


Parameters:

Pump:

SPECK P11/5-200

Pressure max.:

P = 30 bar

Capacity:

Q = 4,7 l/min

Drive:

Single phase electric

Drive power:

0,55 kW

Medium:

Woda

Maks. medium temperature:

700C


Standard equipement:

Unloader valve, manometer, pressure accumulator, inlet water filter


Options:

Working pressure up to 200 bar with small capacity, with suitable drive. Belt drive possible


HIGH PRESSURE PUMPING UNIT


KRS 43/130


High pressure pumping unit to supply water cutting device in wood panel's factory


Parameters:

Pump:

SPECK P30/43-130

Max. pressure:

P = 130 bar

Capacity:

Q = 28,5 l/min

Drive:

electric, three-phase

Power:

7,5 kW

Medium:

Water

Max. medium temp.:

600C


Standard equipement:

Unloader valve, manometer, pressure accumulator, inlet water filter


Options:

Capacity up to 43 l/min with more powerful drive



HIGH PRESSURE PUMPING UNIT

KRSD 90/18


Multipurpose high przessure unit. Designed to clean sewer systems


Parameters:

Pump:

SPECK NP16/18-140

Maximum pressure:

P = 90 bar

Capacity:

Q = 18,5 l/min

Drive:

Diesel engine

Power:

4,5 kW

Medium:

Water

Max. Medium temperature:

600C


Standard equipment:

Convenient cart, unloader valve with pressure regulation, manometer, hydroaccumulator, strainer filter


Options:

Drive with power enough to handle 140 bar pressure. Hose reel also available

HIGH PRESSURE PUMPING SYSTEM FOR CAR WASHING FACILITIES


KRS 2 x 140/15 P21


Complete pumping system for car washing facility. Designed to work with two washing stands. Included control system.


Parameters:

Basic pumping unit:

KRS 140/15 P21 unit, 2 pieces

Total power requirement (maximum):

8 kW

Total capacity requirement (maximum):

30 l/min

Basic pumping unit parameters

Pump:

SPECK P21/15-160

Pressure:

P = 120 bar

Capacity:

Q = 15 l/min

Drive:

Three phase electric motor

Drive power:

4,0 kW

Medium:

Clean, cold water

Max. medium temperature:

700C


Standard equipment:

Control system, auto-stop devices, on/of switches installed next to washing stands.


Modifications:

Possibility of design with tank with floating valve. Optional cover
